Photographs of some of our work

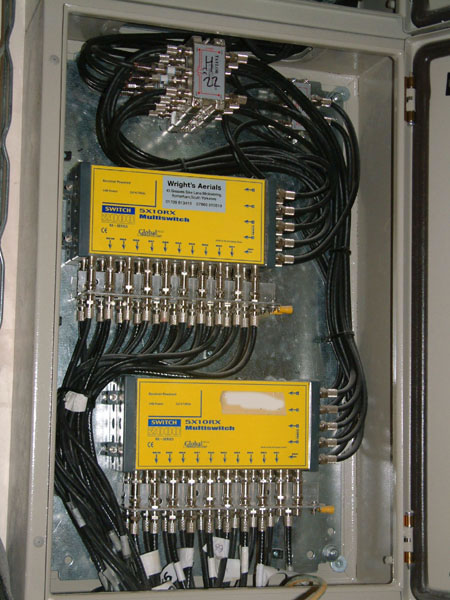

This is a repeater on a UHF/sat IF distribution system. It has 40 outputs; two to each of 20 flats. The ten-way multiswitches are in two stacks of two. Unusually this repeater is passive, in that the switches are powered by the satellite receivers, and there is no UHF amplification. No power supply is needed at the repeater position. Signal levels are set at the head end.
